PYTHIA  8.312
Public Member Functions | List of all members
AlpgenHooks Class Reference

#include <GeneratorInput.h>

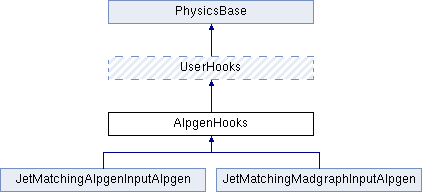

Inheritance diagram for AlpgenHooks:
UserHooks PhysicsBase JetMatchingAlpgenInputAlpgen JetMatchingMadgraphInputAlpgen

Public Member Functions

 AlpgenHooks (Pythia &pythia)
 Constructor and destructor. More...

bool initAfterBeams ()
 Override initAfterBeams routine from UserHooks. More...

- Public Member Functions inherited from UserHooks
virtual ~UserHooks ()
 Destructor.

virtual bool canModifySigma ()
 Possibility to modify cross section of process.

virtual double multiplySigmaBy (const SigmaProcess *sigmaProcessPtr, const PhaseSpace *phaseSpacePtr, bool inEvent)
 Multiplicative factor modifying the cross section of a hard process. More...

virtual bool canBiasSelection ()
 Possibility to bias selection of events, compensated by a weight.

virtual double biasSelectionBy (const SigmaProcess *sigmaProcessPtr, const PhaseSpace *phaseSpacePtr, bool inEvent)
 Multiplicative factor in the phase space selection of a hard process. More...

virtual double biasedSelectionWeight ()
 Event weight to compensate for selection weight above.

virtual bool canVetoProcessLevel ()
 Possibility to veto event after process-level selection.

virtual bool doVetoProcessLevel (Event &)

virtual bool canSetLowEnergySigma (int, int) const

virtual double doSetLowEnergySigma (int, int, double, double, double) const

virtual bool canVetoResonanceDecays ()
 Possibility to veto resonance decay chain.

virtual bool doVetoResonanceDecays (Event &)

virtual bool canVetoPT ()

virtual double scaleVetoPT ()
 Transverse-momentum scale for veto test.

virtual bool doVetoPT (int, const Event &)

virtual bool canVetoStep ()

virtual int numberVetoStep ()
 Up to how many ISR + FSR steps of hardest interaction should be checked.

virtual bool doVetoStep (int, int, int, const Event &)

virtual bool canVetoMPIStep ()

virtual int numberVetoMPIStep ()
 Up to how many MPI steps should be checked.

virtual bool doVetoMPIStep (int, const Event &)

virtual bool canVetoPartonLevelEarly ()

virtual bool doVetoPartonLevelEarly (const Event &)

virtual bool retryPartonLevel ()

virtual bool canVetoPartonLevel ()
 Possibility to veto event after parton-level selection.

virtual bool doVetoPartonLevel (const Event &)

virtual bool canSetResonanceScale ()
 Possibility to set initial scale in TimeShower for resonance decay.

virtual double scaleResonance (int, const Event &)

virtual bool canVetoISREmission ()
 Possibility to veto an emission in the ISR machinery.

virtual bool doVetoISREmission (int, const Event &, int)

virtual bool canVetoFSREmission ()
 Possibility to veto an emission in the FSR machinery.

virtual bool doVetoFSREmission (int, const Event &, int, bool=false)

virtual bool canVetoMPIEmission ()
 Possibility to veto an MPI.

virtual bool doVetoMPIEmission (int, const Event &)

virtual bool canReconnectResonanceSystems ()
 Possibility to reconnect colours from resonance decay systems.

virtual bool doReconnectResonanceSystems (int, Event &)

virtual bool canChangeFragPar ()
 Can change fragmentation parameters.

virtual void setStringEnds (const StringEnd *, const StringEnd *, vector< int >)

virtual bool doChangeFragPar (StringFlav *, StringZ *, StringPT *, int, double, vector< int >, const StringEnd *)

virtual bool doVetoFragmentation (Particle, const StringEnd *)

virtual bool doVetoFragmentation (Particle, Particle, const StringEnd *, const StringEnd *)

virtual bool canVetoAfterHadronization ()

virtual bool doVetoAfterHadronization (const Event &)
 Do the actual veto after hadronization.

virtual bool canSetImpactParameter () const
 Can set the overall impact parameter for the MPI treatment.

virtual double doSetImpactParameter ()
 Set the overall impact parameter for the MPI treatment.

virtual bool onEndHadronLevel (HadronLevel &, Event &)
 Custom processing at the end of HadronLevel::next.

- Public Member Functions inherited from PhysicsBase
void initInfoPtr (Info &infoPtrIn)
 This function is called from above for physics objects used in a run. More...

virtual ~PhysicsBase ()
 Empty virtual destructor.

bool flag (string key) const
 Shorthand to read settings values.

int mode (string key) const

double parm (string key) const

string word (string key) const

vector< bool > fvec (string key) const

vector< int > mvec (string key) const

vector< double > pvec (string key) const

vector< string > wvec (string key) const


Additional Inherited Members

- Public Types inherited from PhysicsBase
enum  Status {
  INCOMPLETE = -1, COMPLETE = 0, CONSTRUCTOR_FAILED, INIT_FAILED,
  LHEF_END, LOWENERGY_FAILED, PROCESSLEVEL_FAILED, PROCESSLEVEL_USERVETO,
  MERGING_FAILED, PARTONLEVEL_FAILED, PARTONLEVEL_USERVETO, HADRONLEVEL_FAILED,
  CHECK_FAILED, OTHER_UNPHYSICAL, HEAVYION_FAILED, HADRONLEVEL_USERVETO
}
 Enumerate the different status codes the event generation can have.

- Protected Member Functions inherited from UserHooks
 UserHooks ()
 Constructor.

virtual void onInitInfoPtr () override
 After initInfoPtr, initialize workEvent. More...

void omitResonanceDecays (const Event &process, bool finalOnly=false)
 omitResonanceDecays omits resonance decay chains from process record. More...

void subEvent (const Event &event, bool isHardest=true)
 subEvent extracts currently resolved partons in the hard process. More...

- Protected Member Functions inherited from PhysicsBase
 PhysicsBase ()
 Default constructor.

virtual void onBeginEvent ()
 This function is called in the very beginning of each Pythia::next call.

virtual void onEndEvent (Status)

virtual void onStat ()
 This function is called from the Pythia::stat() call.

void registerSubObject (PhysicsBase &pb)
 Register a sub object that should have its information in sync with this.

- Protected Attributes inherited from UserHooks
Event workEvent = {}
 Have one event object around as work area.

double selBias = 1.
 User-imposed selection bias.

double enhancedEventWeight = {}
 Bookkept quantities for boosted event weights.

double pTEnhanced = {}

double wtEnhanced = {}

- Protected Attributes inherited from PhysicsBase
InfoinfoPtr = {}

SettingssettingsPtr = {}
 Pointer to the settings database.

ParticleDataparticleDataPtr = {}
 Pointer to the particle data table.

LoggerloggerPtr = {}
 Pointer to logger.

HadronWidthshadronWidthsPtr = {}
 Pointer to the hadron widths data table.

RndmrndmPtr = {}
 Pointer to the random number generator.

CoupSMcoupSMPtr = {}
 Pointers to SM and SUSY couplings.

CoupSUSYcoupSUSYPtr = {}

BeamSetupbeamSetupPtr = {}

BeamParticlebeamAPtr = {}

BeamParticlebeamBPtr = {}

BeamParticlebeamPomAPtr = {}

BeamParticlebeamPomBPtr = {}

BeamParticlebeamGamAPtr = {}

BeamParticlebeamGamBPtr = {}

BeamParticlebeamVMDAPtr = {}

BeamParticlebeamVMDBPtr = {}

PartonSystemspartonSystemsPtr = {}
 Pointer to information on subcollision parton locations.

SigmaTotalsigmaTotPtr = {}
 Pointers to the total/elastic/diffractive cross sections.

SigmaCombinedsigmaCmbPtr = {}

set< PhysicsBase * > subObjects

UserHooksPtr userHooksPtr


Detailed Description

AlpgenHooks: provides Alpgen file reading options. Note that it is defined with virtual inheritance, so that it can be combined with other UserHooks classes, see e.g. main32.cc.

Constructor & Destructor Documentation

AlpgenHooks ( Pythia pythia)

Constructor and destructor.


Main implementation of AlpgenHooks class. This may be split out to a separate C++ file if desired, but currently included here for ease of use.Constructor: provides the 'Alpgen:file' option by directly changing the Pythia 'Beams' settings

If LHAupAlpgen needed, construct and pass to Pythia

Member Function Documentation

bool initAfterBeams ( )
inlinevirtual

Override initAfterBeams routine from UserHooks.


Initialisation routine which is called by pythia.init(). This happens after the local pointers have been assigned and after Pythia has processed the Beam information (and therefore LHEF header information has been read in), but before any other internal initialisation. Provides the remaining 'Alpgen:*' options.

Read in ALPGEN specific configuration variables

If ALPGEN parameters are present, then parse in AlpgenPar object

Set masses if requested

Set MLM:nJets if requested

Set MLM merging parameters if requested

Warn if setMLM requested, but parameters not present

Initialisation complete.

Reimplemented from UserHooks.


The documentation for this class was generated from the following file:
