Sigma1Process Class Reference

#include <SigmaProcess.h>

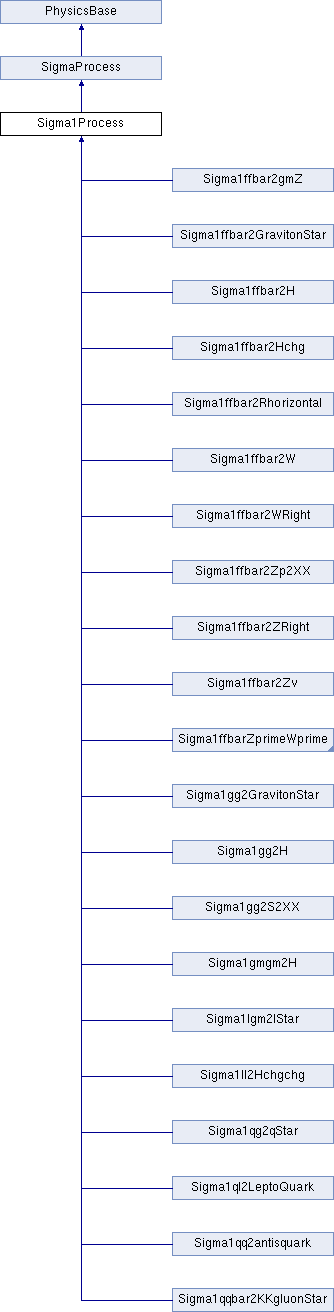

Inheritance diagram for Sigma1Process:
SigmaProcess PhysicsBase Sigma1ffbar2gmZ Sigma1ffbar2GravitonStar Sigma1ffbar2H Sigma1ffbar2Hchg Sigma1ffbar2Rhorizontal Sigma1ffbar2W Sigma1ffbar2WRight Sigma1ffbar2Zp2XX Sigma1ffbar2ZRight Sigma1ffbar2Zv Sigma1ffbarZprimeWprime Sigma1gg2GravitonStar Sigma1gg2H Sigma1gg2S2XX Sigma1gmgm2H Sigma1lgm2lStar Sigma1ll2Hchgchg Sigma1qg2qStar Sigma1ql2LeptoQuark Sigma1qq2antisquark Sigma1qqbar2KKgluonStar

Public Member Functions

virtual ~Sigma1Process ()
 Destructor.

virtual int nFinal () const
 Number of final-state particles.

virtual void set1Kin (double x1in, double x2in, double sHin)
 Input and complement kinematics for resolved 2 -> 1 process.

virtual double sigmaHat ()
 Evaluate sigmaHat(sHat) for resolved 2 -> 1 processes.

virtual double sigmaHatWrap (int id1in=0, int id2in=0)

- Public Member Functions inherited from SigmaProcess
virtual ~SigmaProcess ()
 Destructor.

void init (BeamParticle *beamAPtrIn, BeamParticle *beamBPtrIn, SLHAinterface *slhaInterfacePtrIn=0)
 Perform simple initialization and store pointers. More...

void setLHAPtr (LHAupPtr lhaUpPtrIn)
 Store or replace Les Houches pointer.

void updateBeamIDs ()
 Switch to new beam particle identities; for similar hadrons only.

virtual void initProc ()
 Initialize process. Only used for some processes.

virtual bool initFlux ()
 Set up allowed flux of incoming partons. Default is no flux. More...

virtual void set2Kin (double, double, double, double, double, double, double, double)

virtual void set2KinMPI (double, double, double, double, double, double, double, bool, double, double)

virtual void set3Kin (double, double, double, Vec4, Vec4, Vec4, double, double, double, double, double, double)

virtual void sigmaKin ()
 Calculate flavour-independent parts of cross section.

virtual double sigmaPDF (bool initPS=false, bool samexGamma=false, bool useNewXvalues=false, double x1New=0., double x2New=0.)

void pickInState (int id1in=0, int id2in=0)
 Select incoming parton channel and extract parton densities (resolved). More...

virtual void setIdColAcol ()
 Select flavour, colour and anticolour.

virtual bool final2KinMPI (int=0, int=0, Vec4=0., Vec4=0., double=0., double=0.)
 Perform kinematics for a Multiparton Interaction, in its rest frame.

virtual double weightDecay (Event &, int, int)

virtual void setScale ()
 Set scale, when that is missing for an external LHA process.

virtual string name () const
 Process name and code, and the number of final-state particles.

virtual int code () const

virtual string inFlux () const
 Need to know which incoming partons to set up interaction for.

virtual bool convert2mb () const
 Need to know whether to convert cross section answer from GeV^-2 to mb.

virtual bool convertM2 () const
 For 2 -> 2 process optional conversion from |M|^2 to d(sigmaHat)/d(tHat).

virtual bool isLHA () const
 Special treatment needed for Les Houches processes.

virtual bool isNonDiff () const
 Special treatment needed for elastic and diffractive processes.

virtual bool isResolved () const

virtual bool isDiffA () const

virtual bool isDiffB () const

virtual bool isDiffC () const

virtual bool isSUSY () const
 Special treatment needed for SUSY processes.

virtual bool allowNegativeSigma () const
 Special treatment needed if negative cross sections allowed.

virtual int id3Mass () const

virtual int id4Mass () const

virtual int id5Mass () const

virtual int resonanceA () const
 Special treatment needed if process contains an s-channel resonance.

virtual int resonanceB () const

virtual bool isSChannel () const
 2 -> 2 and 2 -> 3 processes only through s-channel exchange.

virtual int idSChannel () const
 NOAM: Insert an intermediate resonance in 2 -> 1 -> 2 (or 3) listings.

virtual bool isQCD3body () const
 QCD 2 -> 3 processes need special phase space selection machinery.

virtual int idTchan1 () const
 Special treatment in 2 -> 3 with two massive propagators.

virtual int idTchan2 () const

virtual double tChanFracPow1 () const

virtual double tChanFracPow2 () const

virtual bool useMirrorWeight () const

virtual int gmZmode () const
 Special process-specific gamma*/Z0 choice if >=0 (e.g. f fbar -> H0 Z0).

bool swappedTU () const
 Tell whether tHat and uHat are swapped (= same as swap 3 and 4).

int id (int i) const
 Give back particle properties: flavours, colours, masses, or all.

int col (int i) const

int acol (int i) const

double m (int i) const

Particle getParton (int i) const

double Q2Ren () const

double alphaEMRen () const

double alphaSRen () const

double Q2Fac () const

double pdf1 () const

double pdf2 () const

double thetaMPI () const
 Give back angles; relevant only for multipe-interactions processes.

double phiMPI () const

double sHBetaMPI () const

double pT2MPI () const

double pTMPIFin () const

void saveKin ()
 Save and load kinematics for trial interactions.

void loadKin ()

void swapKin ()

virtual void setIdInDiff (int, int)
 Set the incoming ids for diffraction.

- Public Member Functions inherited from PhysicsBase
void initInfoPtr (Info &infoPtrIn)
 This function is called from above for physics objects used in a run. More...

virtual ~PhysicsBase ()
 Empty virtual destructor.

bool flag (string key) const
 Shorthand to read settings values.

int mode (string key) const

double parm (string key) const

string word (string key) const

vector< bool > fvec (string key) const

vector< int > mvec (string key) const

vector< double > pvec (string key) const

vector< string > wvec (string key) const


Protected Member Functions

 Sigma1Process ()
 Constructor.

virtual void store1Kin (double x1in, double x2in, double sHin)
 Store kinematics and set scales for resolved 2 -> 1 process. More...

virtual bool setupForME ()
 Calculate modified masses and four-vectors for matrix elements. More...

- Protected Member Functions inherited from SigmaProcess
 SigmaProcess ()
 Constructor.

void addBeamA (int idIn)

void addBeamB (int idIn)

int sizeBeamA () const

int sizeBeamB () const

void addPair (int idAIn, int idBIn)

int sizePair () const

bool setupForMEin ()
 Calculate incoming modified masses and four-vectors for matrix elements. More...

void setId (int id1in=0, int id2in=0, int id3in=0, int id4in=0, int id5in=0)
 Set flavour, colour and anticolour.

void setColAcol (int col1=0, int acol1=0, int col2=0, int acol2=0, int col3=0, int acol3=0, int col4=0, int acol4=0, int col5=0, int acol5=0)

void swapColAcol ()

void swapCol1234 ()

void swapCol12 ()

void swapCol34 ()

double weightTopDecay (Event &process, int iResBeg, int iResEnd)
 Common code for top and Higgs secondary decay angular weights. More...

double weightHiggsDecay (Event &process, int iResBeg, int iResEnd)

- Protected Member Functions inherited from PhysicsBase
 PhysicsBase ()
 Default constructor.

virtual void onInitInfoPtr ()

virtual void onBeginEvent ()
 This function is called in the very beginning of each Pythia::next call.

virtual void onEndEvent (Status)

virtual void onStat ()
 This function is called from the Pythia::stat() call.

void registerSubObject (PhysicsBase &pb)
 Register a sub object that should have its information in sync with this.


Additional Inherited Members

- Public Types inherited from PhysicsBase
enum  Status {
  INCOMPLETE = -1, COMPLETE = 0, CONSTRUCTOR_FAILED, INIT_FAILED,
  LHEF_END, LOWENERGY_FAILED, PROCESSLEVEL_FAILED, PROCESSLEVEL_USERVETO,
  MERGING_FAILED, PARTONLEVEL_FAILED, PARTONLEVEL_USERVETO, HADRONLEVEL_FAILED,
  CHECK_FAILED, OTHER_UNPHYSICAL, HEAVYION_FAILED, HADRONLEVEL_USERVETO
}
 Enumerate the different status codes the event generation can have.

- Public Attributes inherited from SigmaProcess
Z0 gamma *Z0 * Usage: weightDecayFlav( process). */ virtual double weightDecayFlav( Event&) {return 1.

- Protected Attributes inherited from SigmaProcess
SusyLesHouches * slhaPtr
 Pointer to an SLHA object.

LHAupPtr lhaUpPtr
 Pointer to LHAup for generating external events.

bool doVarE
 Initialization data, normally only set once.

int nQuarkIn

int renormScale1

int renormScale2

int renormScale3

int renormScale3VV

int factorScale1

int factorScale2

int factorScale3

int factorScale3VV

double Kfactor

double mcME

double mbME

double mmuME

double mtauME

double renormMultFac

double renormFixScale

double factorMultFac

double factorFixScale

int higgsH1parity
 CP violation parameters for Higgs sector, normally only set once.

int higgsH2parity

int higgsA3parity

double higgsH1eta

double higgsH2eta

double higgsA3eta

double higgsH1phi

double higgsH2phi

double higgsA3phi

int idA
 Information on incoming beams.

int idB

double mA

double mB

bool isLeptonA

bool isLeptonB

bool hasLeptonBeams

bool beamA2gamma

bool beamB2gamma

bool hasGamma

vector< InBeam > inBeamA
 Partons in beams, with PDF's.

vector< InBeam > inBeamB

vector< InPair > inPair
 Allowed colliding parton pairs, with pdf's.

double mH
 Store common subprocess kinematics quantities.

double sH

double sH2

double Q2RenSave
 Store Q2 renormalization and factorization scales, and related values.

double alpEM

double alpS

double Q2FacSave

double x1Save

double x2Save

double pdf1Save

double pdf2Save

double sigmaSumSave

int id1
 Store flavour, colour, anticolour, mass, angles and the whole particle.

int id2

int id3

int id4

int id5

int idSave [12]

int colSave [12]

int acolSave [12]

double mSave [12]

double cosTheta

double sinTheta

double phi

double sHMass

double sHBeta

double pT2Mass

double pTFin

Particle parton [12]

Particle partonT [12]

double mSaveT [12]

double pTFinT

double cosThetaT

double sinThetaT

double phiT

double mME [12]

Vec4 pME [12]

bool swapTU
 Store whether tHat and uHat are swapped (= same as swap 3 and 4).

- Protected Attributes inherited from PhysicsBase
Info * infoPtr = {}

Settings * settingsPtr = {}
 Pointer to the settings database.

ParticleData * particleDataPtr = {}
 Pointer to the particle data table.

Logger * loggerPtr = {}
 Pointer to logger.

HadronWidths * hadronWidthsPtr = {}
 Pointer to the hadron widths data table.

Rndm * rndmPtr = {}
 Pointer to the random number generator.

CoupSM * coupSMPtr = {}
 Pointers to SM and SUSY couplings.

CoupSUSY * coupSUSYPtr = {}

BeamSetup * beamSetupPtr = {}

BeamParticle * beamAPtr = {}

BeamParticle * beamBPtr = {}

BeamParticle * beamPomAPtr = {}

BeamParticle * beamPomBPtr = {}

BeamParticle * beamGamAPtr = {}

BeamParticle * beamGamBPtr = {}

BeamParticle * beamVMDAPtr = {}

BeamParticle * beamVMDBPtr = {}

PartonSystems * partonSystemsPtr = {}
 Pointer to information on subcollision parton locations.

SigmaTotal * sigmaTotPtr = {}
 Pointers to the total/elastic/diffractive cross sections.

SigmaCombined * sigmaCmbPtr = {}

set< PhysicsBase * > subObjects

UserHooksPtr userHooksPtr

- Static Protected Attributes inherited from SigmaProcess
static const double CONVERT2MB = 0.389380
 Constants: could only be changed in the code itself. More...

static const double MASSMARGIN = 0.1
 The sum of outgoing masses must not be too close to the cm energy.

static const double COMPRELERR = 1e-10

static const int NCOMPSTEP = 10


Detailed Description

Sigma1Process is the base class for 2 -> 1 processes. It is derived from SigmaProcess.

Member Function Documentation

bool setupForME ( )
protectedvirtual

Calculate modified masses and four-vectors for matrix elements.

Common initial-state handling.

Final state trivial here.

Done.

Reimplemented from SigmaProcess.

double sigmaHatWrap ( int  id1in = 0,
int  id2in = 0
)
virtual

Wrapper to sigmaHat, to (a) store current incoming flavours, (b) convert from GeV^-2 to mb where required, and (c) convert from |M|^2 to d(sigmaHat)/d(tHat) where required.

The Sigma1Process class. Base class for resolved 2 -> 1 cross sections; derived from SigmaProcess. Wrapper to sigmaHat, to (a) store current incoming flavours, (b) convert from GeV^-2 to mb where required, and (c) convert from |M|^2 to d(sigmaHat)/d(tHat) where required.

Convert 2 * pi * delta(p^2 - m^2) to Breit-Wigner with same area.

Reimplemented from SigmaProcess.

void store1Kin ( double  x1in,
double  x2in,
double  sHin
)
protectedvirtual

Store kinematics and set scales for resolved 2 -> 1 process.

Input and complement kinematics for resolved 2 -> 1 process.

Default value only sensible for these processes.

Incoming parton momentum fractions and sHat.

Different options for renormalization scale, but normally sHat.

Different options for factorization scale, but normally sHat.

Evaluate alpha_strong and alpha_EM.

The documentation for this class was generated from the following files:
Generated by   doxygen 1.8.11
